XP Series | HP Series |
U2 Series | U2K
Series | PA2 Series |
PA4 Series | A2 Series | A4
Series
XP Series: 600Wx2,
800Wx2, or 1000Wx2 @4W
Our XP Series amplifiers will test your imagination.
They feature a built-in electronic 2-way active crossover with
variable sweep, 70Hz to 3.5KHz, and 24dB/octave slope. The crossover
signals may be fed both to the internal amplifiers and through
gain adjusted line balanced outputs to drive slave amplifiers.
The XP Series also incorporate a toroidal mains transformer, variable-speed
DC fan cooling, Stereo, Parallel, or bridged operation, and balanced
inputs via XLR and TRS 1/4" phonejacks. Speaker connections
are provided by industry standard SpeakonTM
connectors. The XP Series operates in dual channel mode at 4 or
8W or in bridged mode at 8W.
HP Series: 600Wx2,
800Wx2, or 1000Wx2 @4W
The HP Series are identical to the XP Series
in all respects except for the lack of built-in electronic crossover.
When combined with the XP's crossover, the HP amplifiers create
an entire "system". The HP Series all feature low noise
toroidal main transformers, variable-speed DC fan cooling, Stereo,
Parallel, or bridged operation, and balanced inputs via XLR and
TRS 1/4" phonejacks. Speaker connections are provided by
industry standard SpeakonTM connectors.
The HP Series operates in dual channel mode at 4 or 8W
or in bridged mode at 8W.
U2 Series:
250Wx2, 350Wx2, 550Wx2, or 750Wx2 @4W
Reliable and Durable Dual Channel Professional
Amplifiers, the U2 Series cover the power range most used in professional
audio applications (500~1500Watts). The U2 Series all feature
toroidal transformers for reduced weight and low noise output,
variable-speed DC fan cooling, Stereo, Parallel, or bridged operation,
and balanced inputs via XLR and TRS 1/4" phonejacks. Speaker
connections are provided by SpeakonTM
connectors. The U2 Series operates in dual channel mode at 4 or
8W or in bridged mode at 8W.
Four models provide power outputs at 250, 350, 550 or 750 watts
per channel (both channels driven at 4W
load).

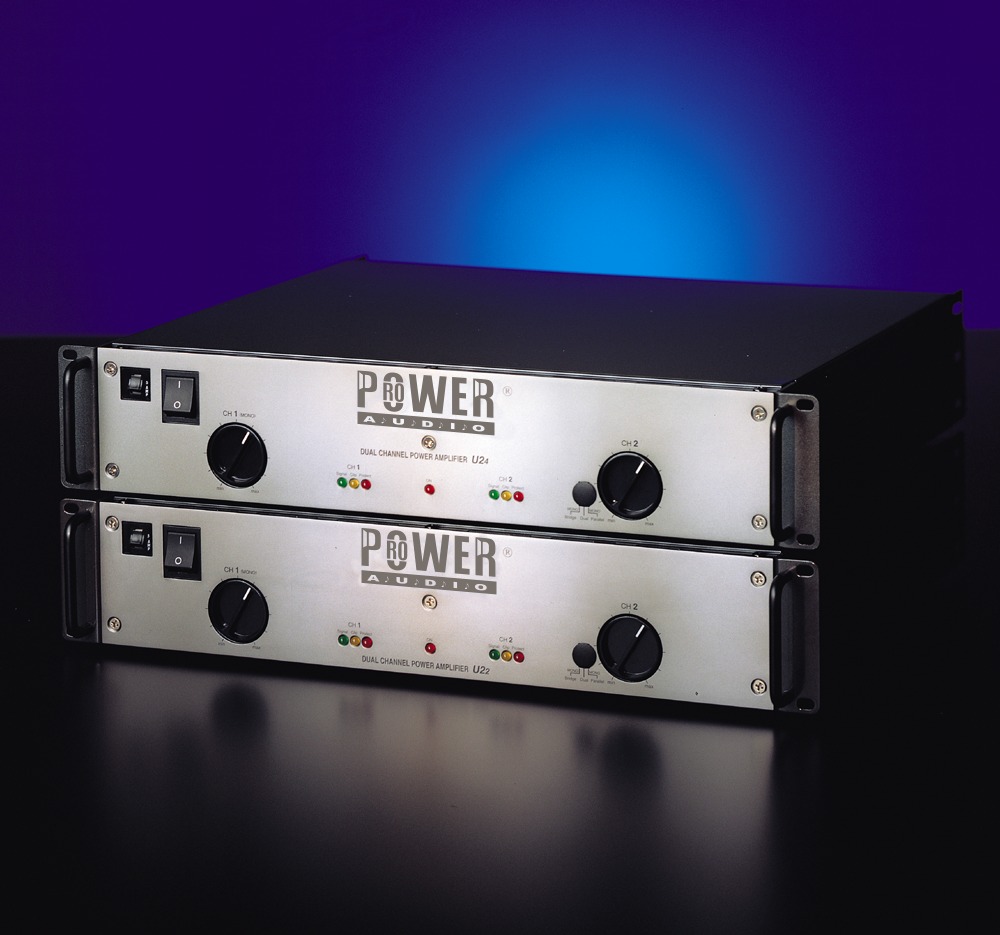

U2K
Series: 150Wx2, 250Wx2, or 400Wx2 @4W
U2Ka Series: 250Wx2 or 400Wx2 @2W
The single Printed Circuit Board design of the
U2K Series eliminates internal wiring that can lead to unreliable
operation, especially when the amplifier is transported often
in touring or mobile sound applications. On top of this rugged
mechanical design is audio designed with the audiophile in mind.
These powerful models will amaze you with their punch and transparency.
The U2K Series amplifiers are built for medium and small clubs
and as side-fills in near-field applications such as in churches,
schools, coffee shops, bars, and shopping stores. The U22a and
U24a are true 2W models and will deliver
average sound pressure level to every corner of a room. They can
drive eight 8W speakers using dual
channels.
|
