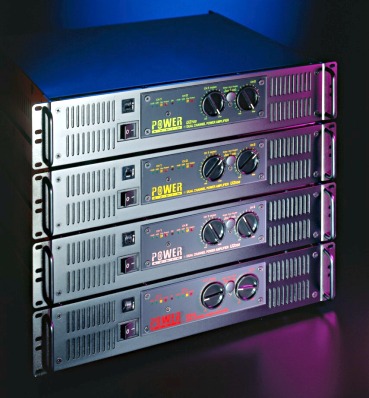

XP Series | HP Series | U2 Series | U2K Series | PA2 Series | PA4 Series | A2 Series | A4 Series U2 Series Dual Channel Amplifiers
|
2U
(3.5" high) 19" Rack Mountable Chassis
Touring or fixed installation applications. Quicklock connecting SpeakonTM speaker connectors. Gold-plated XLR and 1/4" TRS Phonejacks input connectors. Powerful, high current, low noise toroidal transformer. Quiet, isolated cooling system. Symmetrical, modularized design for easy transportation and quick service. Front mounted, detent volume controls. LED display for signal level (-10dB, -3dB, clip) and speaker protect for each channel. Stereo/Parallel and Bridge Mode operation. |
|
The ProPower Audio U2 Series feature a highly dynamic, ultra-low distortion pre-driver circuit. The discrete complementary-symmetrical push-pull cascade amplifier circuit of this type is only found on high end amplifier models. |
Direct coupled NFB and DC servo easily handle subwoofers. A stable direct couple negative feedback with DC servo circuitry is applied for the best ultra-low frequency performance. |
|
Condition |
U2750 |
U2550 |
U2350 |
U2250 |
---|---|---|---|---|---|
Output(rms) |
4 ohm both Ch. |
750W x 2 |
550W x 2 |
350W x 2 |
250W x 2 |
Output(rms) |
8 ohm both Ch. |
450W x 2 |
350W x 2 |
250W x 2 |
150W x 2 |
Output(rms) |
8 ohm bridged |
1500W x 1 |
1100W x 1 |
700W x 1 |
500W x 1 |
Output(program) |
4 ohm both Ch. |
1000W x 2 |
700W x 2 |
450W x 2 |
300W x 2 |
Output(program) |
8 ohm both Ch. |
600W x 2 |
450W x 2 |
300W x 2 |
200W x 2 |
Distortion |
At rated power |
0.025% |
|||
Freq. response |
At rated power |
20Hz~20kHz +0, -0.5dB |
|||
Freq. bandwidth |
At rated power |
10Hz~50kHz +0, -3 dB |
|||
Input sensitivity |
At rated power |
0.775 Vrms |
|||
IM distortion |
60Hz and 7kHz |
0.03% |
|||
Input impedance |
Each leg to GND |
10k ohm |
|||
Damping factor |
1 kHz@8 ohm |
300 |
|||
Crosstalk |
|
-80 dB |
|||
Noise |
At rated power |
-100 dB |
|||
Slew rate |
|
80V/uS |
70V/uS |
50V/uS |
40V/uS |
Voltage gain |
|
35dB |
34dB |
32 dB |
31dB |
Power supply |
|
1800VA |
1400VA |
800VA |
600VA |
Max current draw |
AC115V(230V) |
20(10)A |
15(8)A |
10(5)A |
5(3)A |
I/O connector |
|
Speakon2, barrier strip1, XLR2 |
|||
Status indicator |
|
-10dB, -3dB, Clip, Protect. |
|||
Controls |
|
2 Level controls, Bridged/Stereo/Parallel, GND/Lift |
|||
Protection |
|
Turn-on, Short, DC, Over temperature |
|||
Cooling |
|
Two variable speed fans |
One fan |
||
Dimension |
2U Rack |
3 1/2"(H) * 19"(W)* 15"(D) |
|||
Weight |
lbs (kg) |
40 (18) |
35 (16) |
30 (14) |
26 (12) |
All specifications subject to change without prior notice | |||||
